Globe Valve For Power Station As Per ANSl B16.34

Model schedule illustration

●Code of aperture: DN

●Valve type code: Z-Gate valve   J-Globe valve   H-Check valve

●Driving manner code: 3-Worm gear worm   4-Spur gear   5-Bevel gear
                                     6--Air driving              9-Electric driving(Hand wheel driving omitted)

●Connecting type code: 6-Welding   8--Bear and insert welding

●Design feature code: 0-Flexible wedge   2-Double gate

●Sealing formation code: H—13Cr   Y—Stellite

●Pressure grade code: 1500Lb   2000Lb   2500Lb   3000Lb   3500Lb

●Body material code: C-WCB   C1—WC1   I-WC6   V-WC9   C12--C12A

For example: 8"Z960Y1500LbC9

Note: 8"-15ooLb welded-end electric gate valve (manually actuation's code is omitted), the sealing face material of elastic wedge disc Stellite, body material Wc9.

Products design features

1. Actuation modes: manual, electric, spur and bevel gear, pneumatic actuations, please make it clear at order.

2. Weld-connected gate valve and stop valve are suitable for the pipeline of PN1.6~32.0Mpa, P54/10oV-P57/170V, a working temperature <540C (570C for P57/170v) in various systems of petroleum, chemical industry, steam power, hydraulic etc. to cut off and get through the medium. The suitable media are: water, steam, oil goods, acid media and so on.

3. Conforms with the requirements of the domestic and foreign advanced standards. The middle cavity of the valve uses the pressure self-tightening sealing structure, the two ends of the branch pipe use welded structure and the welded groove can be connected per either the standard or the required one by users. Of a reliable seal, good performance and nice modeling.

4. The sealing faces of both disc and seat ring are made by means of built-up welding with either iron-based alloy or Stellite Co-based carbide alloy upon different requirements, wearable, high temperature resisting, corrosion resisting, good friction resisting and long duration.

5. The stem, after the modified and surface nitriding treatment, has a good friction and corrosion resistance and a back-seal structure to ensure the valve no leak outward from the stem when opened during running and able to replace the stem packing.

6. The valves with a large or a middle apertures can use the internal by-pass structure and be set with a rolling bearing and a thrust bearing, resulting in flexible open-close.

7. The electric stop valve is fitted with SMC valve electric actuator, features a small casing, light weight, full functions and a nice loutlook and can be used either with a program controlled computer or an electric actuator upon the user requirement.

Main parameter of the products

Products performance specification

Note: the shell test pressure with "*" mark can be negotiated with user a and specified as 1.5 times design pressure.

Technical specification

Note: valve connecting flange and welded groove can be designed and made upon the user requirements.

Major parts material form

No.	Part name	Material
1	Body	WCB、WC1、WC6、WC9、C12
2	Disc	A105、A182-F11、F22、F5、F9
3	Stem	A182-F6a、A182-F22、A182-F11
4	Sealing ring	Graphite
5	Bonnet	WCB、WC1、WC6、WC9、C12
6	Packing	Graphite
7	Valve stem nut	Copper alloy
8	Electronic device	Package

Main size of outside and weight

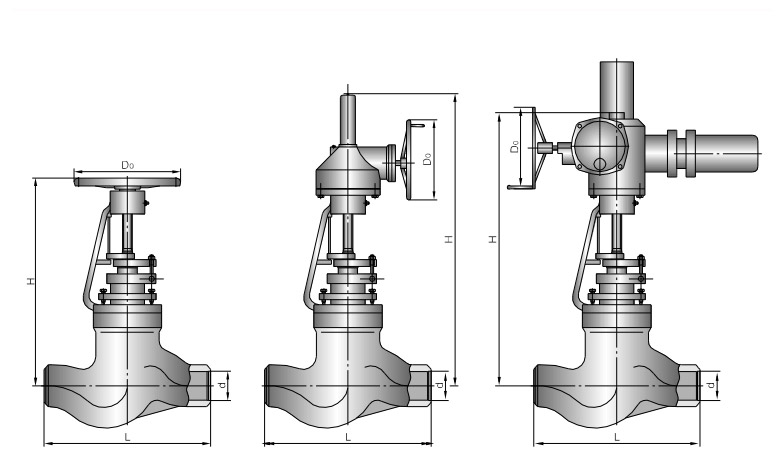

Model: J61Y-1500Lb、J561Y-1500Lb、J961Y-1500Lb

Main size of outside and weight

Model: J61Y-2000Lb、J561Y-2000Lb、J961Y-2000Lb

Main size of outside and weight

Model: J61Y-2500Lb、J561Y-2500Lb、J961Y-2500Lb

Main size of outside and weight

Model: J61Y-3500Lb、J561Y-3500Lb、J961Y-3500Lb
